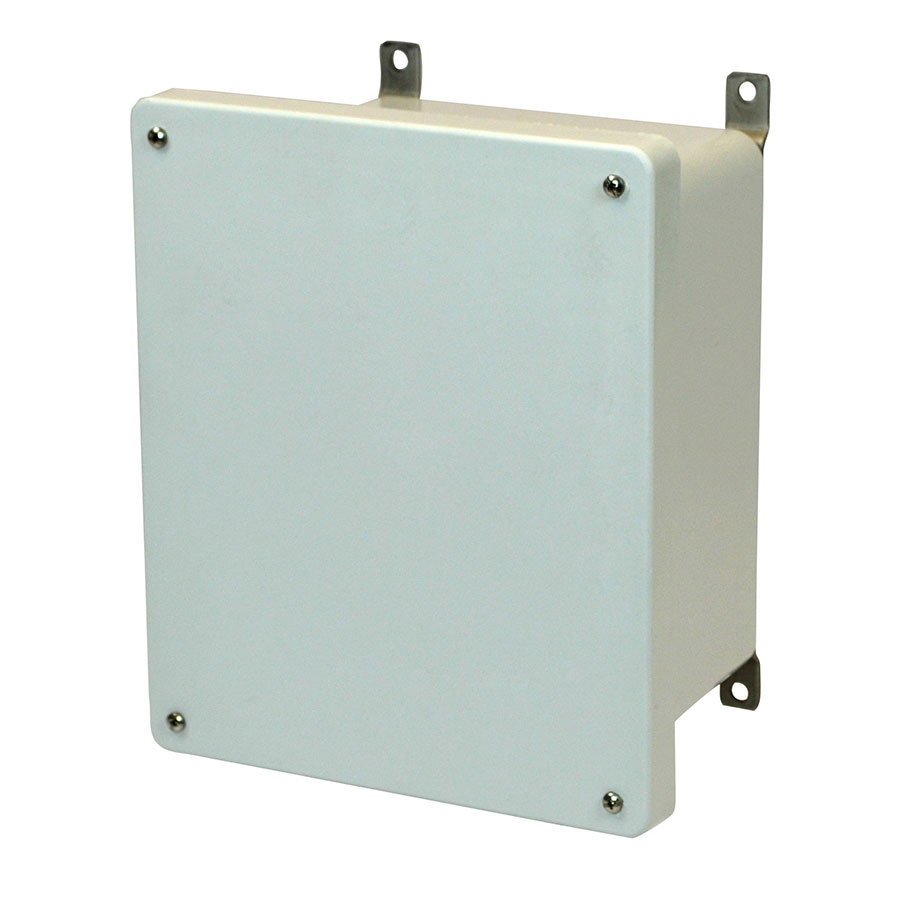

AM Series fiberglass wall mount enclosure assembly with 4-screw lift-off cover

AM1084I

  • Enclosure Type: JIC Size
  • Cover Type: Opaque
  • Mounting Description: Stainless steel feet fastened to back side brass inserts
  • Height: 258 in 6553.2 mm
  • Width: 210 in 5334 mm
  • Depth: 105 in 2667 mm
  • Usable Depth: 93 in 2362.2 mm
  • Volume: 346 cu. in. 5669936.6 cu mm

Product Info

  • Brand: AM Series
  • UPC: 8965982db27d
  • Carton Quantity: 1
  • Carton Weight: 2.5 lbs 1.134 kg
  • Country of Origin: India
  • Color: Gray (RAL 7035)
  • Material: Fiberglass Reinforced Polyester - compression molded SMC box and cover
  • Additional Materials: 304 Stainless Steel Mounting brackets, 304 Stainless Steel internal hardware, 304 stainless steel external hardware (hinges/latches/fasteners), Brass inserts
  • Features:

    Non-corrosive, non- conductive, UV protected, Flameretardent, Impact resistant, Chemical Resistant, Leight Weight with lower installation cost, Negligible maintenance cost, easy to modify and Loger life cycle compare to Steel/Polycarbonate. Rigid design with Back panel inserts plus Stainless Steel wall mounting brackets and neoprene gasket encased in a continous channel on the cover.

  • Application:

    Enclose and protect electrical and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.

  • Standards:

    IEC-62208 , IEC-60695-2-11:2000, IEC-60529:2013-08, IEC-60068-2-2:2007, IEC-62262-2002, UL-94 5VA, RoHS Compliant

Online Order Notice

Outside the USA? Please call 1-800-722-2679 to talk with one of our customer service specialists! Online orders for USA customers only.

Description

AM Series fiberglass wall mount enclosure assembly with 4-screw lift-off cover

Additional information

Weight 2.5 lbs
