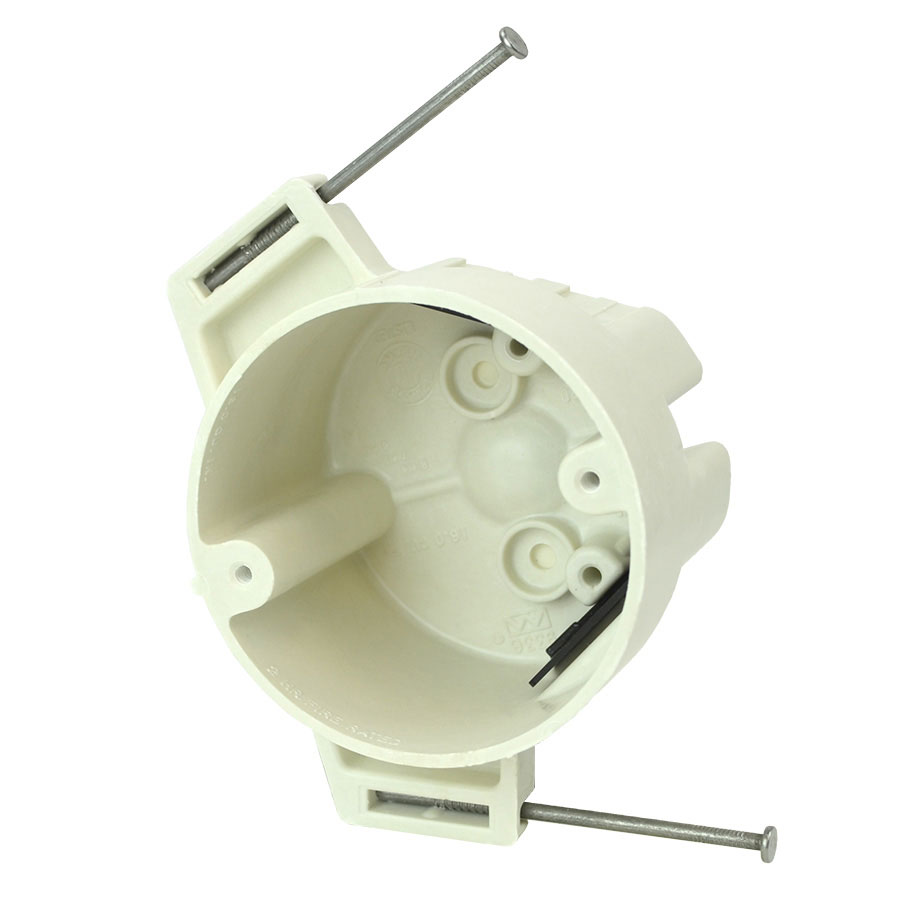

3.5″ dia. round fixture support box for use with nonmetallic sheathed cable

Replacement for 9336-NC2

9336-NK

Name: 9336-NK
SKU: 85339102717
Availability: InStock

$116.47 /carton

3.5″ round fixture support box with nails

PDF Button

SKU: 85339102717 Categories: Ceiling - Fixture, Electrical Boxes, Residential Products Tag: Back-to-Back

Find Rep. Find a Distributor

Carton Quantity: 50
Mounting Description: Nail-on with fetter ring nails
Box Type: Ceiling - Fixture
Box Features: Nails, Speed "K" nonmetallic clamps
Installation Type: New Work
Width: 3.5 in
Depth: 2-3/8 in
Volume: 16 cu. in.
Fixture Rating: 50lbs

Product Info

Brand: fiberglassBOX
UPC: 85339102717
UNSPSC: 39121316
Carton Weight: 22 lbs 9.979 kg
Country of Origin: United States of America
Color: Off white
Fire Classification: Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)

Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less
For use in fire resistance walls constructed of min. 5-1/2 in. deep wood or nonbearing steel studs and gypsum wallboard and gypsum board with Classification periods of 2 hrs or less. Clearance between boxes and cutouts in wall shall not exceed 1/8 in. The area of openings for boxes shall not aggregate more than 100 sq in. per 100 sq ft of wall or partition area with no opening exceeding 22.0 sq in. *Outlet boxes with the suffix -NK, -NGK, -NKFR, -HNK, -HNGK, -SSK may be installed back to back on opposite sides of wall or partition.

*Applies to: 9335 (-NK), (-HNK), (-NGK), (-HNGK), (-NKFR); 9336 (-NK), (-NGK), (-HNK), (-HNGK); 9350 (-HNK); 9351 (-NK), (-NGK), (-NKFR), (-SSK); 9352 (-NK), (-NGK); and 9365 (-NK)

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

Distance between boxes in adjacent cavities may be reduced to 5 ½ inches, excluding open web trusses

Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance.) See UL Product iQ document attached below.
Material: Fiberglass reinforced polyester
Additional Materials: Carbon steel fasteners, Polyvinyl chloride clamps
Box Diameter: 3.5

Features:
Machine tapped fixture holes, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures, Speed “K” Clamps factory installed
Application:
New work residential construction 2 HR fire resistive walls and ceilings (50 lbs. fixture support), UL approved for back-to-back installation
Box Diameter: 3.5
Standards:
ANSI / UL 514C: File No E30594
