9375-FR

Email

Name: 9375-FR
SKU: 85339792918
Price: 217.27 USD
Availability: InStock

$217.27 /carton

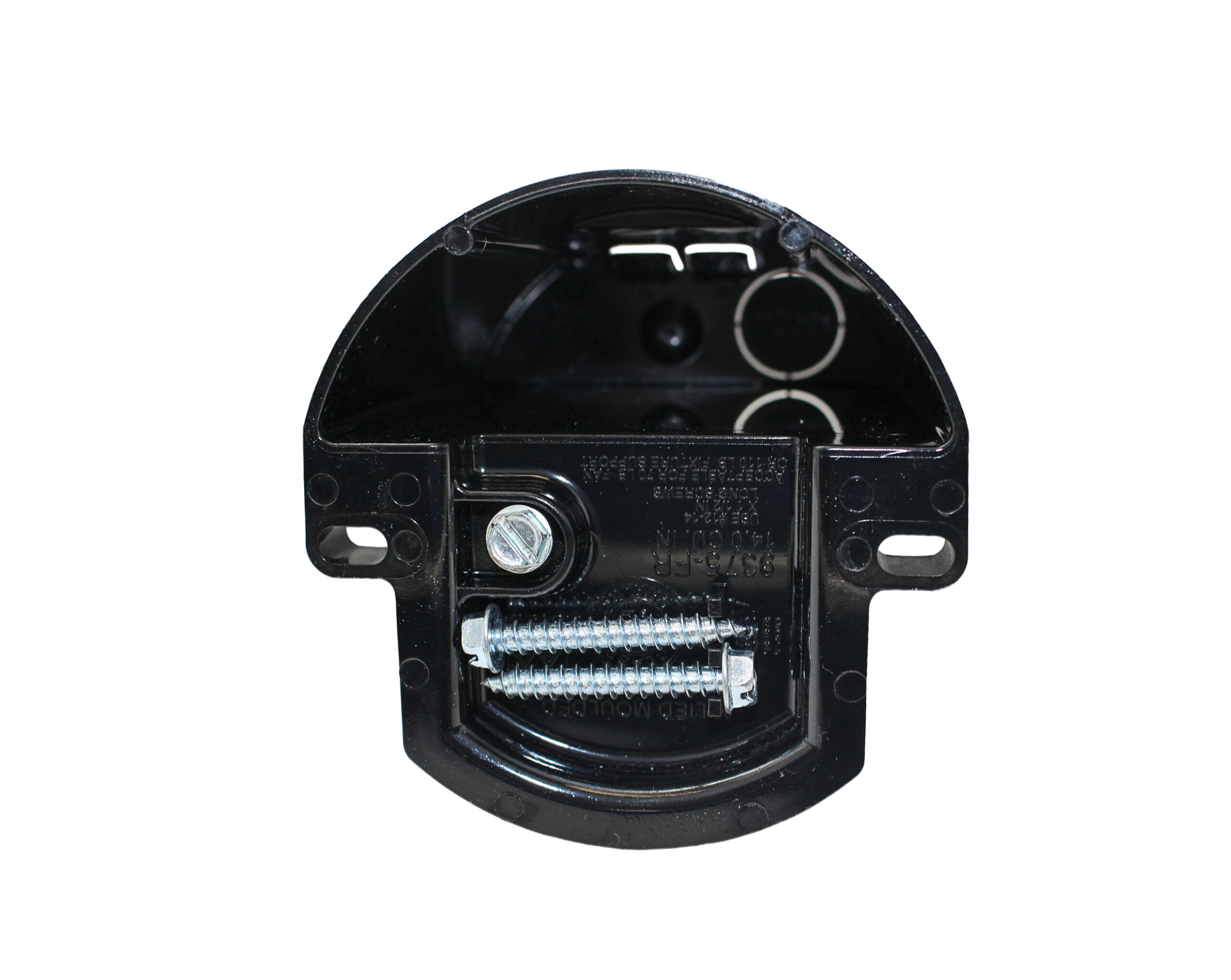

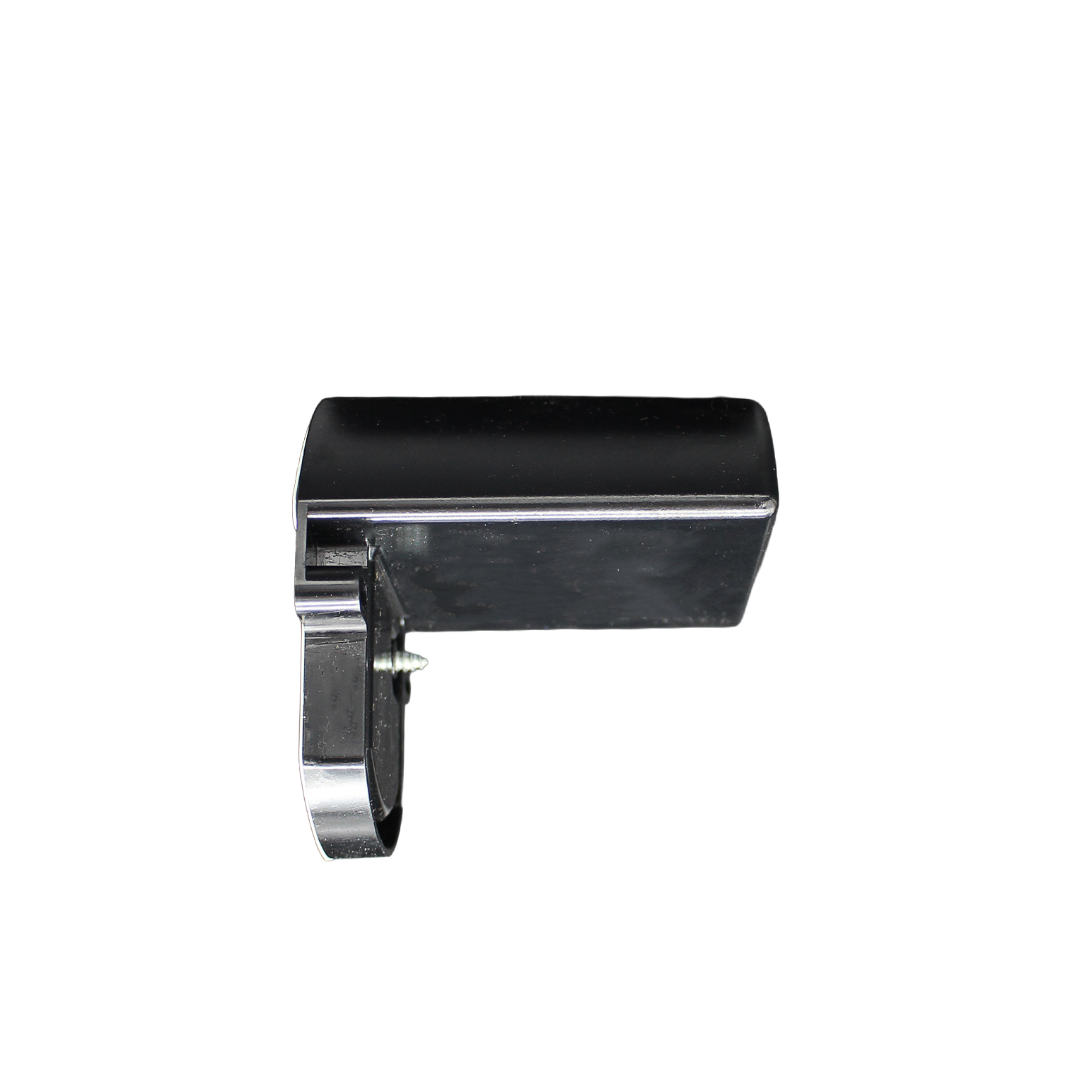

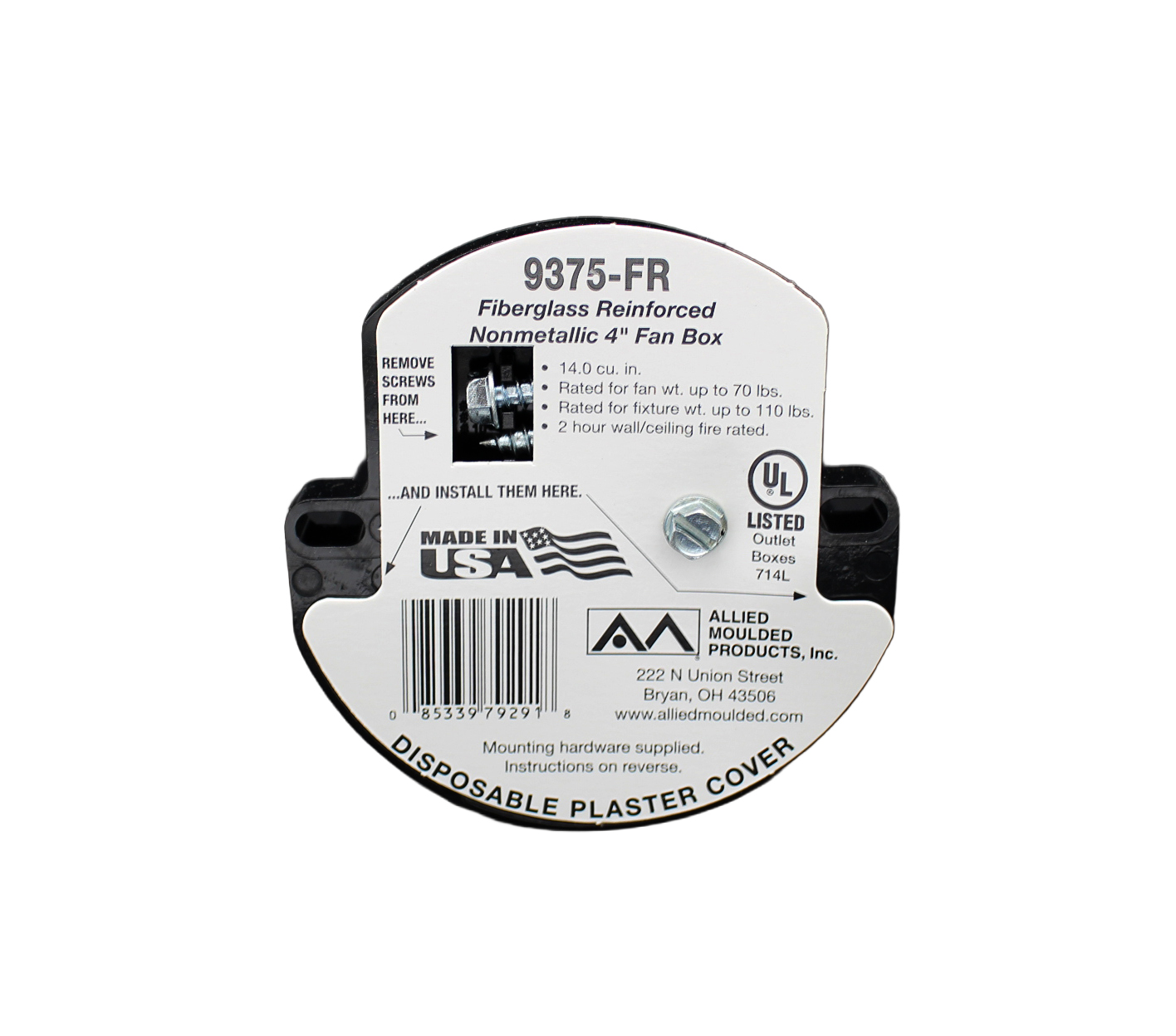

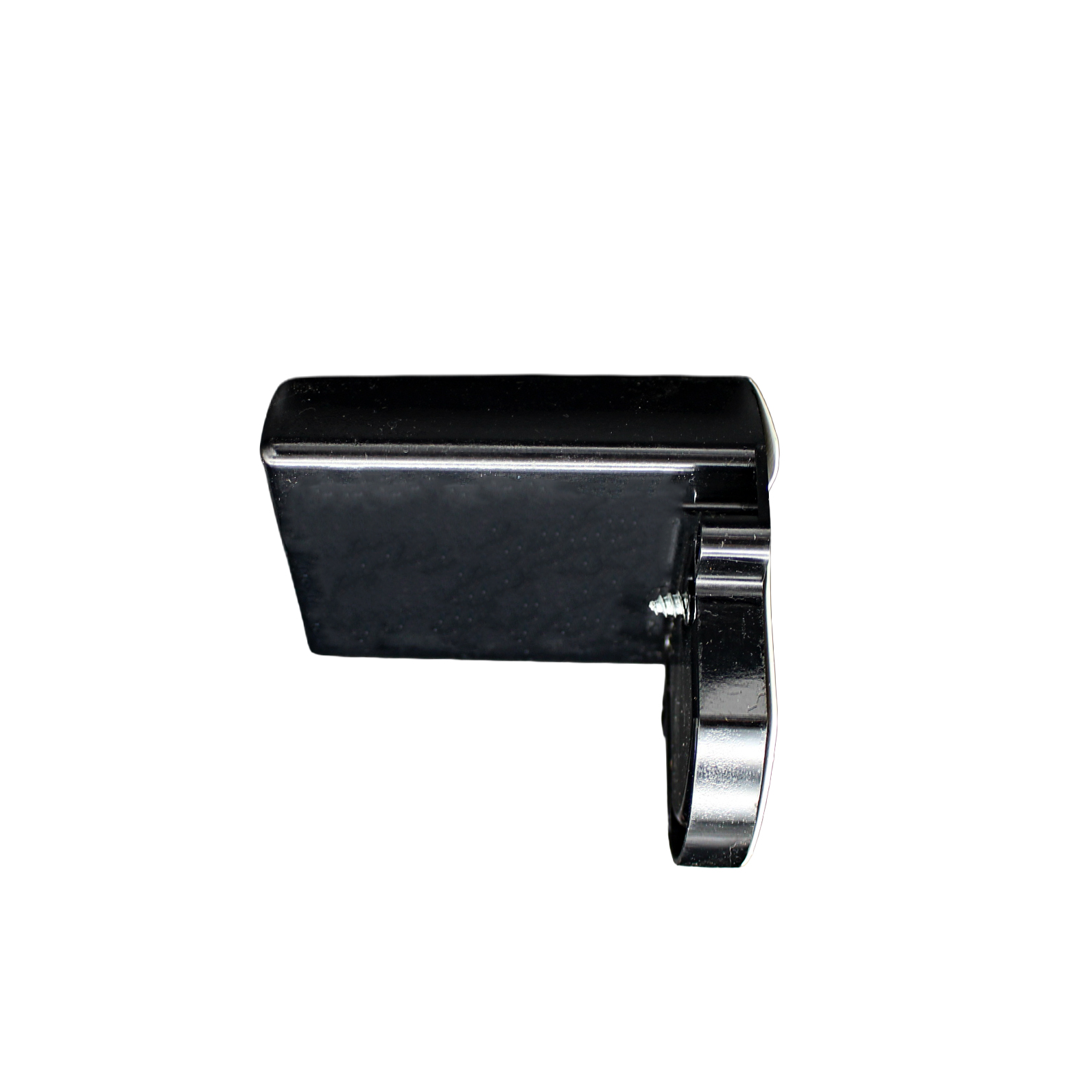

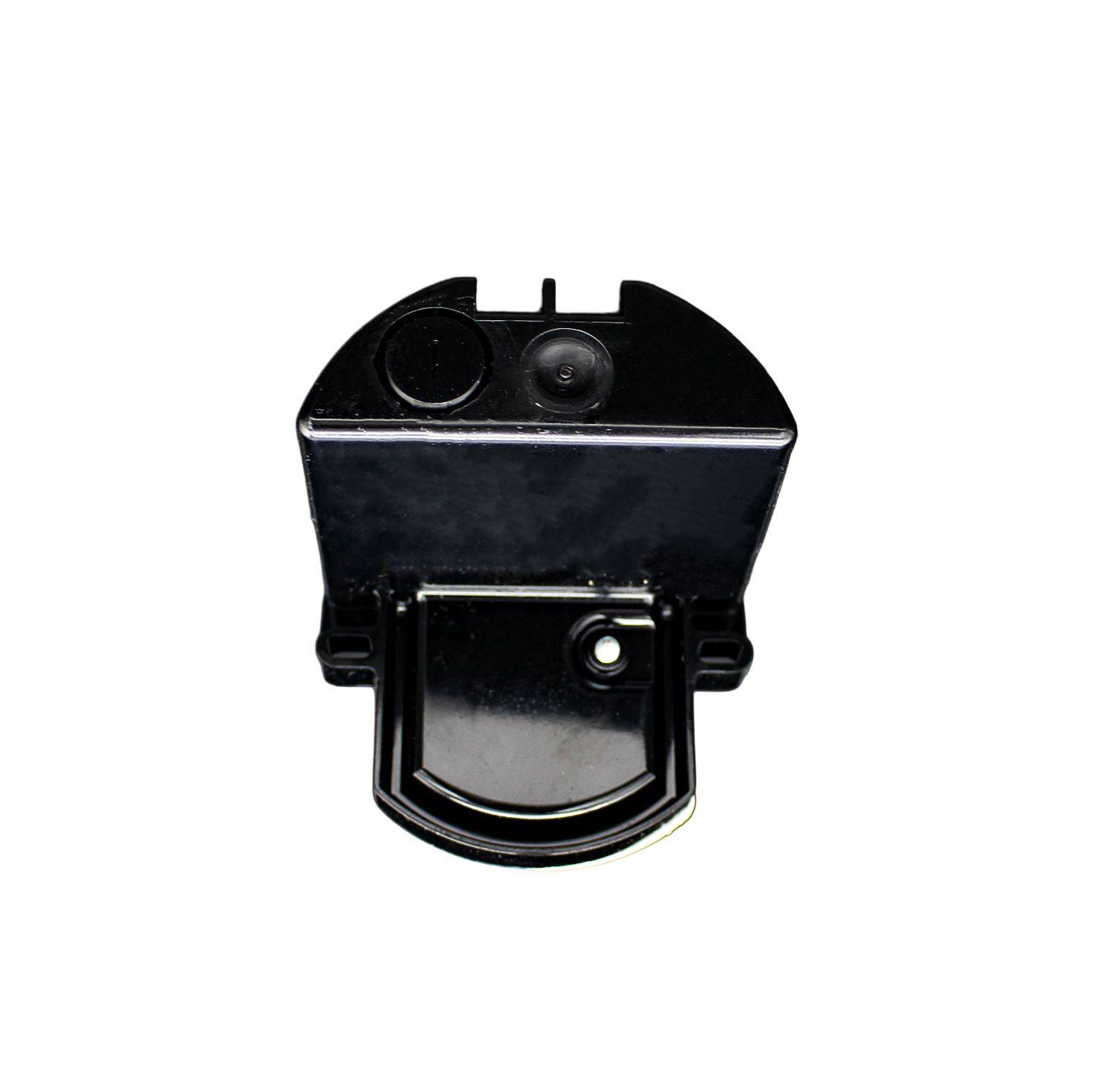

4″ round bottom mount fan support box

Quantity	Discount (%)	Price
1 - 23	—	$217.27
24+	97.38 %	$5.69

Features:
1/2″ deep base with side cube wiring capacity, fan/fixture screws for joist mounting
Application:
New and old work residential construction 2 HR fire resistive walls and ceilings (70 lbs. fan support and 110 lbs. fixture support)
Box Diameter: 4
Standards:
ANSI / UL 514C: File No. E30594
Fire Classification:
Fire Test of Building Construction Materials
ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less
Shall be separated by a horizontal distance of not less than 3 inches

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less
Distance between boxes in adjacent cavities may be reduced to 5 ½ inches

Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

4″ dia. round fan support box for use with nonmetallic sheathed cable

Weight	7 lbs
Dimensions	13 × 8 × 11 in
