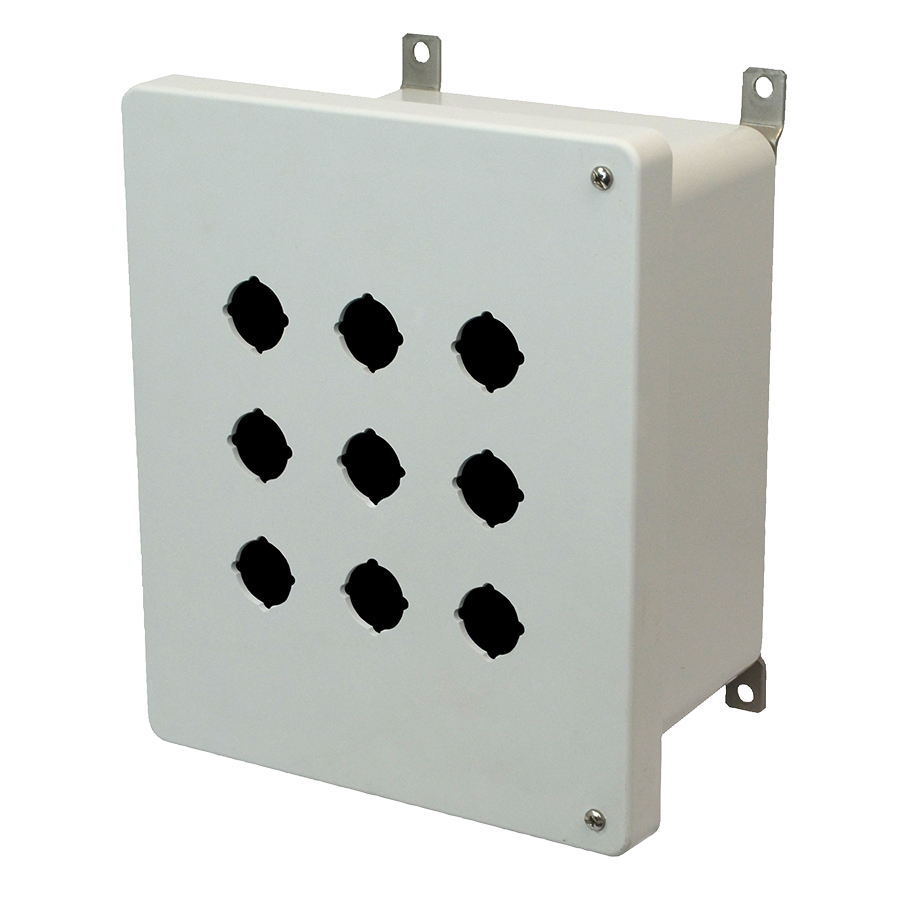

AM1086HP9 Fiberglass enclosure with 2screw hinged cover and 9 pushbutton holes

AM1086HP9

View PDF

10"x8"x6" AM Series fiberglass wall mount enclosure assembly with 2-screw hinged cover and 9 (30.5mm) pushbutton holes

AM1086HP9

$160.91

Fiberglass enclosure with 2-screw hinged cover and 9 pushbutton holes

SKU: 85339910985 Categories: , ,
Find Rep.
  • Availability:

    Made to order; For up-to-date delivery on this product, please contact us at 1-800-722-2679 or sales@alliedmoulded.com

  • Enclosure Type: Pushbutton
  • Cover Type: Opaque
  • Closure Type: 2-Screw
  • Mounting Description: Stainless steel feet fastened to back side brass inserts
  • Height: 10.14 in 257.556 mm
  • Width: 8.26 in 209.804 mm
  • Depth: 6.01 in 152.654 mm
  • Usable Depth: 5.68 in 144.272 mm
  • Volume: 513 cu. in. 8406582.3 cu mm

Product Info

  • Brand: AM Series
  • UPC: 85339910985
  • UNSPSC: 39121326
  • Carton Quantity: 1
  • Carton Weight: 6 lbs 2.722 kg
  • Country of Origin: United States of America
  • Color: Gray (RAL 7035)
  • Material: ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and Cover
  • Additional Materials: 316 stainless steel external hardware (hinges/latches/fasteners), 316 stainless steel mounting brackets, Brass inserts, Plated carbon steel internal hardware, Polyurethane (FIP) Formed-In-Place gasket system
  • Features:

    Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous channel on the cover.

  • Application:

    Designed to protect push-button switches from damage and wear, these enclosures have holes for mounting push buttons and an internal compartment to house associated wires and mechanisms. Push buttons are often used for operating industrial machines or processes for indoor and outdoor applications. Note: 22.5mm hole designs are available by adding a “22” to the part number (i.e. AM1086HP922).

  • Standards:

    UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175

    Complies with:
    1. EN / IEC 60204-1 and 60529 Type IP66
    2. RoHS directive



     WARNING – PROP 65
    Click here for more information!

Documents

Online Order Notice

Outside the USA? Please call 1-800-722-2679 to talk with one of our customer service specialists! Online orders for USA customers only.

Description

PDF Button

10″x8″x6″ AM Series fiberglass wall mount enclosure assembly with 2-screw hinged cover and 9 (30.5mm) pushbutton holes

Additional information

Weight 6 lbs
Dimensions 7 × 11 × 13 in
