AM1224R Fiberglass enclosure with raised 4screw liftoff cover

AM1224R

View PDF

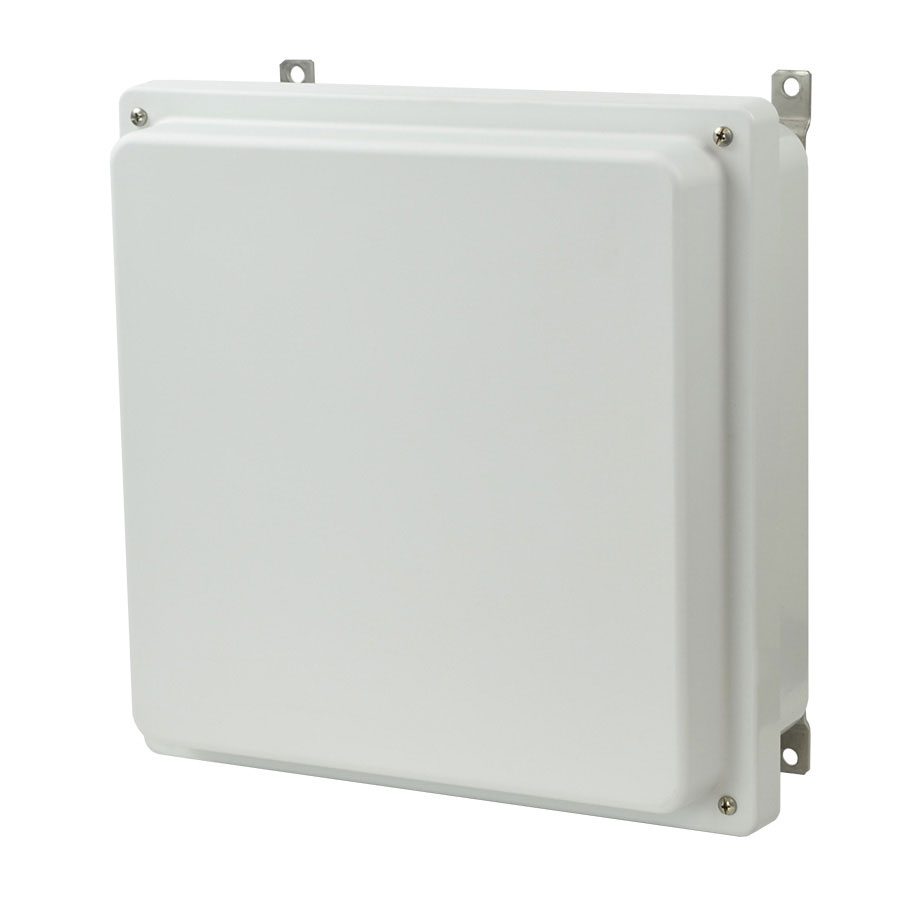

12"x12"x4" AM-R Series fiberglass wall mount enclosure assembly with raised 4-screw lift-off cover

AM1224R

$147.41

Fiberglass enclosure with raised 4-screw lift-off cover

SKU: 85339974918 Categories: , ,
Find Rep.
  • Availability:

    For up-to-date delivery on this product, please contact us at 1-800-722-2679 or sales@alliedmoulded.com

  • Enclosure Type: JIC Size
  • Cover Type: Opaque
  • Closure Type: 4-Screw Lift-Off
  • Mounting Description: Stainless steel feet fastened to back side brass inserts
  • Height: 12.14 in 308.356 mm
  • Width: 12.14 in 308.356 mm
  • Depth: 4.13 in 104.902 mm
  • Usable Depth: 5.26 in 133.604 mm
  • Volume: 609 cu. in. 9979743.9 cu mm

Product Info

  • Brand: AM-R Series
  • UPC: 85339974918
  • UNSPSC: 39121324
  • Carton Quantity: 1
  • Carton Weight: 8 lbs 3.629 kg
  • Country of Origin: United States of America
  • Color: Gray (RAL 7035)
  • Material: ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and Cover
  • Additional Materials: 316 stainless steel external hardware (hinges/latches/fasteners), 316 stainless steel mounting brackets, Plated carbon steel internal hardware, Brass inserts, Polyurethane (FIP) Formed-In-Place gasket system
  • Features:

    Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous channel on the cover.

  • Application:

    Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.

  • Standards:

    UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13; File No. E120175

    Complies with:

    EN / IEC 60204-1 and 60529 Type IP66 and units rated 6P are IP68 (submersible up to 24 hours at a depth of 6 feet/1.8 meters)
    RoHS directive



     WARNING – PROP 65
    Click here for more information!

Documents

Online Order Notice

Outside the USA? Please call 1-800-722-2679 to talk with one of our customer service specialists! Online orders for USA customers only.

Description

PDF Button

12″x12″x4″ AM-R Series fiberglass wall mount enclosure assembly with raised 4-screw lift-off cover

Additional information

Weight 8 lbs
Dimensions 8 × 15 × 15 in
