AM724925FSDD Fiberglass free standing doubledoor enclosure with hinged cover and 3point handle

AM724925FSDD

View PDF

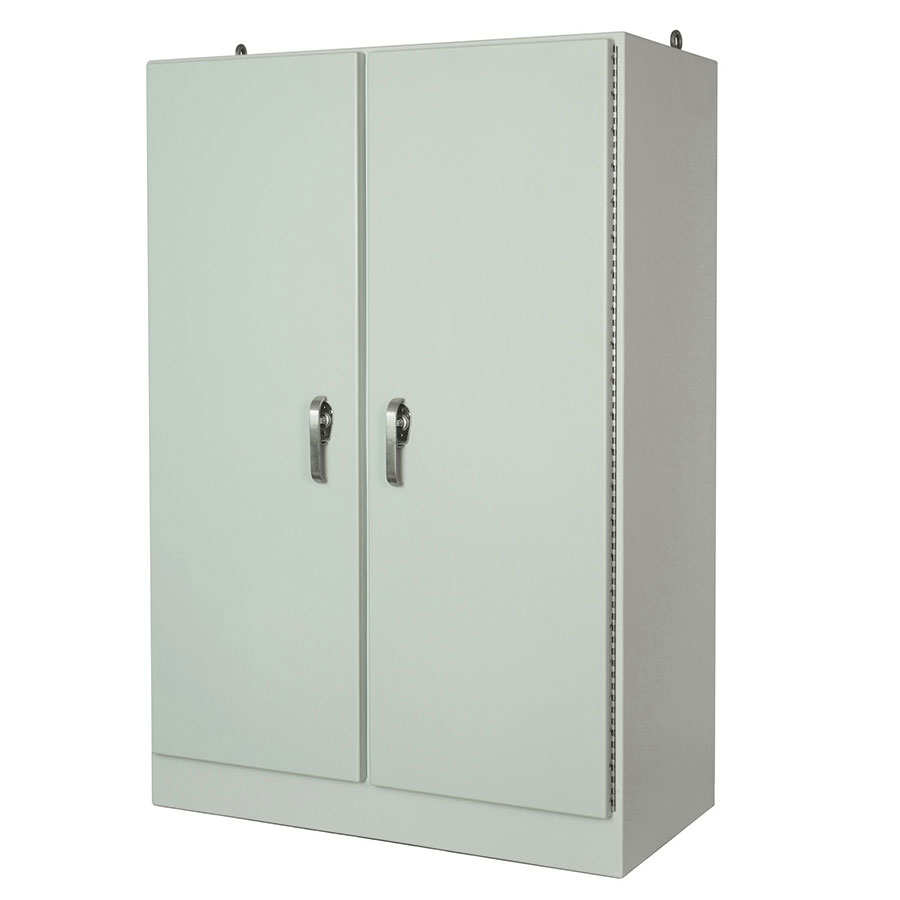

72"x49"x25" Empire Series fiberglass free standing double-door enclosure with hinged cover and stainless-steel 3-point latching handles

AM724925FSDD

$13,664.77

Fiberglass free standing double-door enclosure with hinged cover and 3-point handle

PDF Button
SKU: 85339940098 Categories: , ,
Find Rep.
  • Availability:

    For up-to-date delivery on this product, please contact us at 1-800-722-2679 or sales@alliedmoulded.com

  • Enclosure Type: Free Standing
  • Cover Type: Opaque
  • Closure Type: 4-Screw Lift-Off
  • Mounting Description: Free standing on floor
  • Height: 72 in 1828.8 mm
  • Width: 49 in 1244.6 mm
  • Depth: 24.5 in 622.3 mm
  • Usable Depth: 24.35 in 618.49 mm
  • Volume: 90599 cu. in. 1484654872.9 cu mm

Product Info

  • Brand: Empire Series
  • UPC: 85339940098
  • UNSPSC: 39121324
  • Carton Quantity: 1
  • Carton Weight: 430 lbs 195.045 kg
  • Country of Origin: India
  • Color: Gray (RAL 7035)
  • Material: ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and Cover
  • Additional Materials: 316 stainless steel external 3-point latching handle, 316 stainless steel external hardware (hinges/latches/fasteners), 316 stainless steel lifting eye bolts, EPDM Spring loaded gasket, Plated alloy steel bonding fastener, Plated carbon steel internal hardware
  • Features:

    Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus a spring loaded gasket system.

  • Application:

    Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.

  • Standards:

    UL 508A, UL 50 and UL 50E Types 1, 4, and 4X; File No. E120175

    Complies with:
    1. EN / IEC 60204-1 and 60529 Type IP66
    2. RoHS directive



     WARNING – PROP 65
    Click here for more information!

  • Standards:

    UL 508A, UL 50 and UL 50E Types 1, 4, and 4X; File No. E120175

    Complies with:
    1. EN / IEC 60204-1 and 60529 Type IP66
    2. RoHS directive



     WARNING – PROP 65
    Click here for more information!

Documents

Online Order Notice

Description

72″x49″x25″ Empire Series fiberglass free standing double-door enclosure with hinged cover and stainless-steel 3-point latching handles

Additional information

Weight 430 lbs
Dimensions 30 × 51 × 83 in
