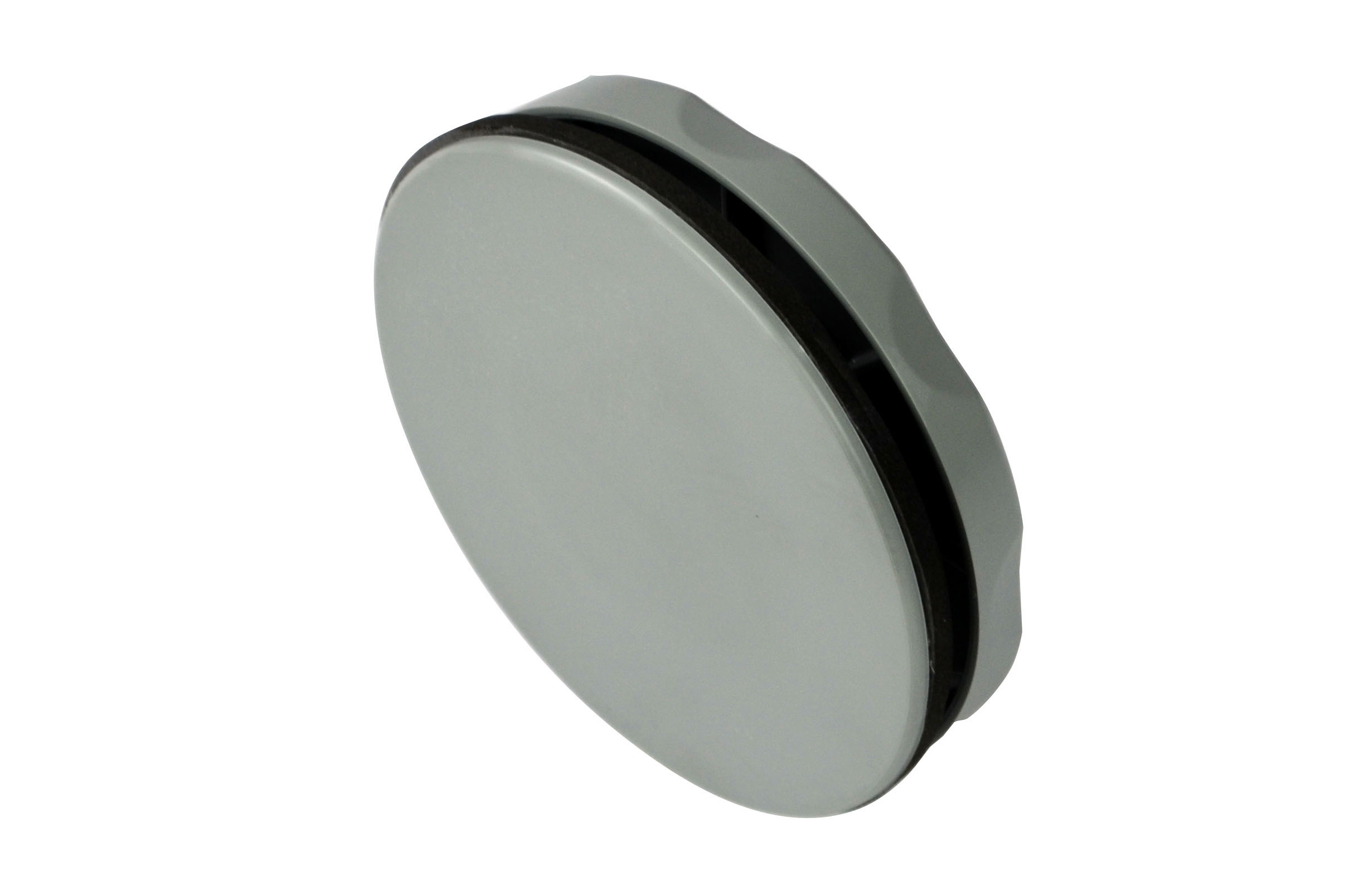

ULTRAPLUG® enclosure hole plug (1.375-1.625) – Dark Gray
ULTRAPLUG® enclosure hole plug (1.375-1.625) - Dark Gray
AMHS100-GY
$11.51
Enclosure hole plug (1.375-1.625)
- Availability:
For up-to-date delivery on this product, please contact us at 1-800-722-2679 or sales@alliedmoulded.com
- Trade Size Ref: 1" Conduit (1.375)
- Plugged Hole Dia. Range: 1.375-1.625
- Plug Diameter: 1.923 in 48.844 mm
- Plug Head Height: 0.235 in 5.969 mm
- Nut Height: 0.5 in 12.7 mm
Product Info
- Brand: ULTRAPLUG®
- UPC: 85339996224
- UNSPSC: 39121321
- Carton Quantity: 1
- Carton Weight: 0.046 lbs 0.021 kg
- Country of Origin: United States of America
- Color: Dark gray (ANSI 61)
- Patents: U.S. Patent No. 9,045,932
- Material: Polycarbonate
- Additional Materials: Blended neoprene/EPDM gasket
- Features:
Plug fins are self centering, anti-rotational design for fast and easy one person assembly and no-tools tightening
- Application:
Capable of plugging unused holes in NEMA 4X enclosures and designed to maintain applicable NEMA/UL/CSA enclosure ratings
- Standards:
Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574
UL® listed and recognized component for use with enclosure products Types 1, 3, 3R, 4, 4X, and 12.
Complies with:
1. EN / IEC 60204-1 and 60529 Type IP66
2. RoHS directive
WARNING – PROP 65
Click here for more information!
Documents
Online Order Notice
Outside the USA? Please call 1-800-722-2679 to talk with one of our customer service specialists! Online orders for USA customers only.
Related Products
-

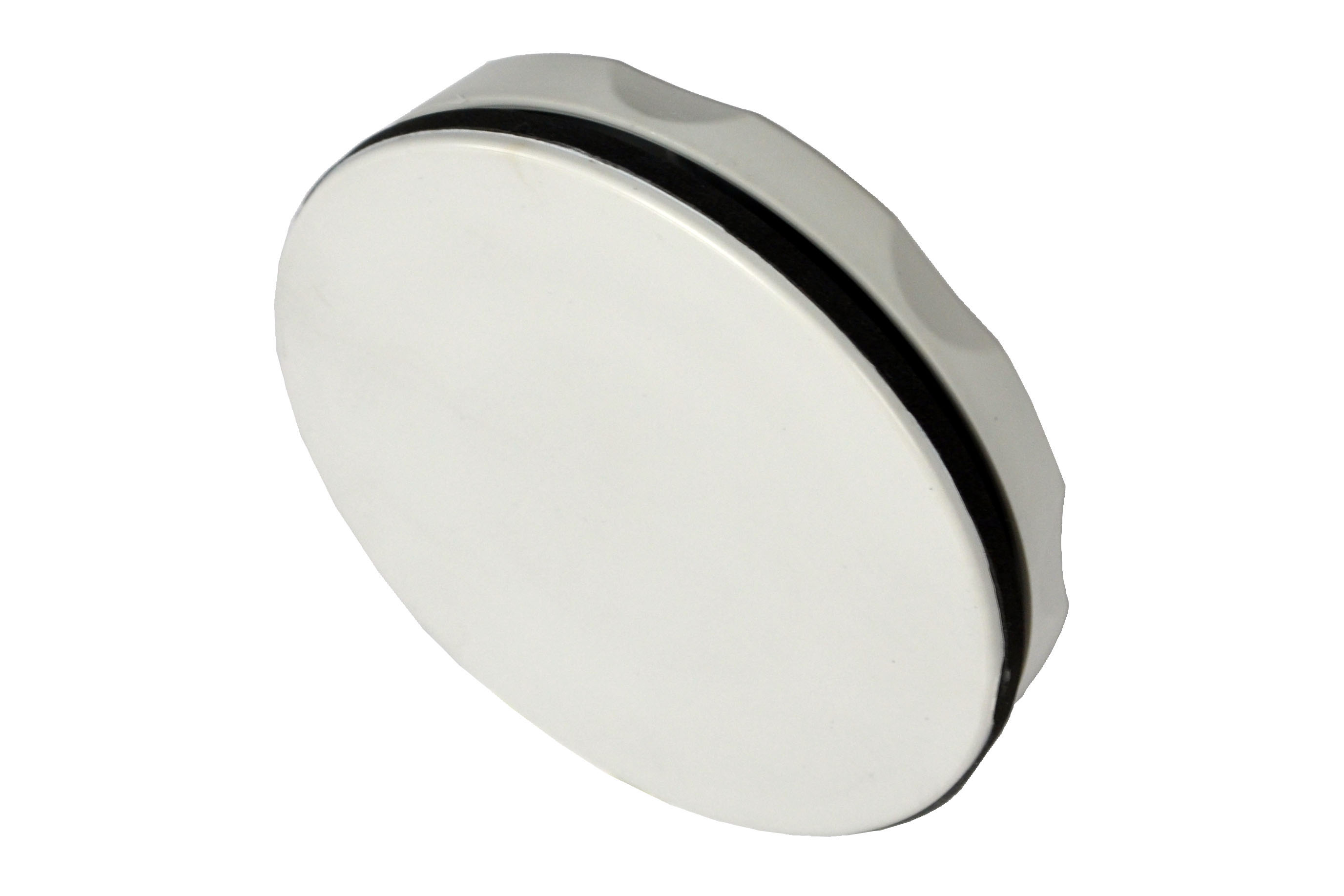

AMHS100
