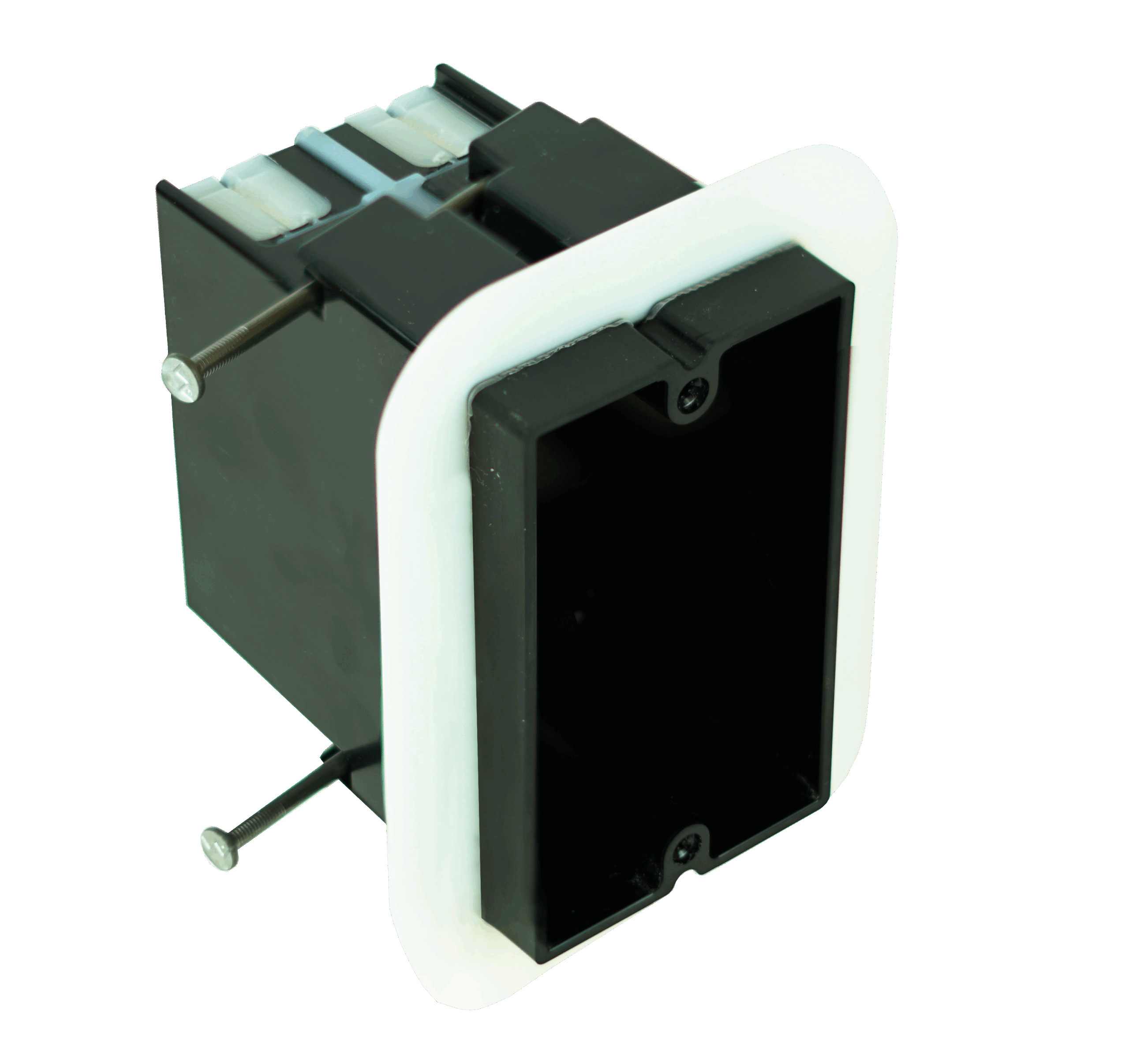

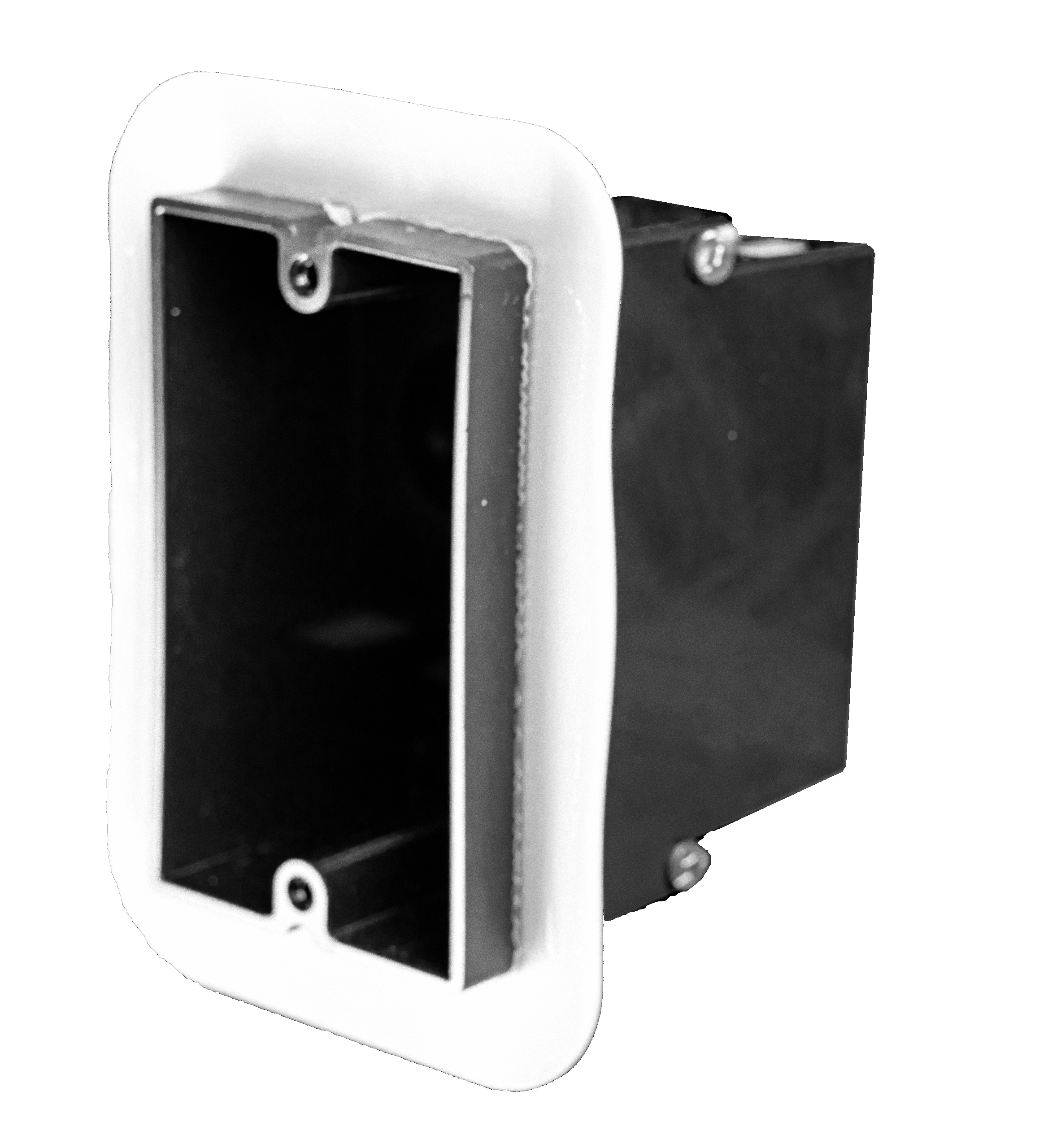

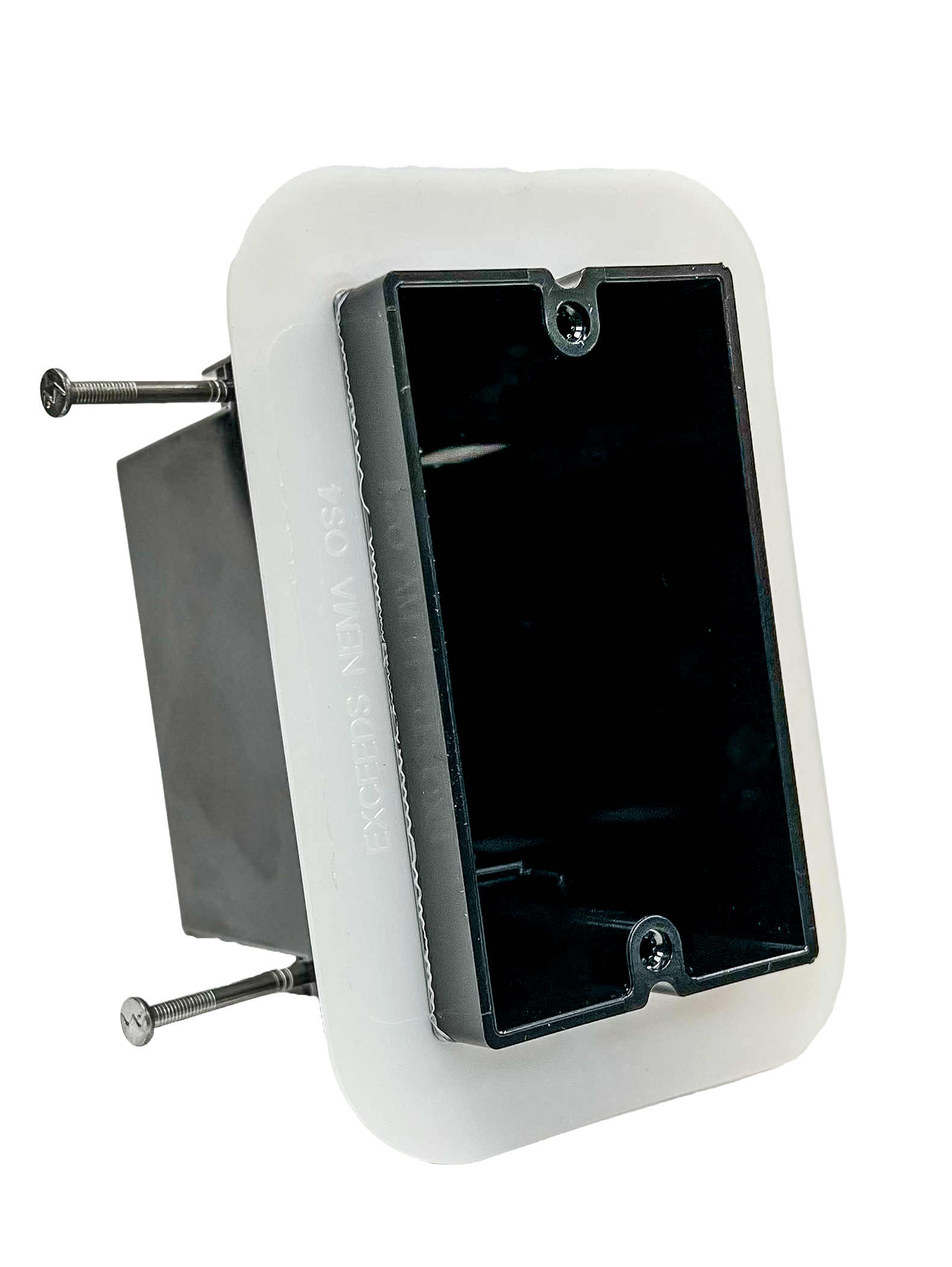

P-221NV Single gang electrical box with nails

P-221NV

View PDF

Single gang electrical box for use with nonmetallic sheathed cable

Find Rep. Find a Distributor
  • Carton Quantity: 48
  • Mounting Description: Angled Nails
  • Box Type: Wall - Switch/Receptacle
  • Box Features: Vapor Seal, Nails
  • Installation Type: New Work
  • Height: 3-9/16" in
  • Width: 2-1/4" (Box), 3-1/2" (Vapor Seal) in
  • Depth: 3-7/8" (box), 3-1/2" (Vapor Seal) in
  • Volume: 22 cu. in.
  • Number of Gangs: 1

Product Info

  • Brand: Vapor Seal FlexBOX
  • UPC: 85339984976
  • Country of Origin: United States of America
  • Color: Black
  • Patents: U.S. Patent No. 11050229, U.S. Patent 11075509
  • Material: Polycarbonate
  • Additional Materials: Thermoplastic Polyester Elastomer (TPE)
  • Features:

    Thermoplastic Polyester Elastomer (TPE) flange for single drywall offset, Molded-in splined device holes

  • Application:
    New work residential construction 2 HR fire resistive walls
  • Standards:

    ANSI / UL 514C: File No. E30594

  • Fire Classification:

    Fire Test of Building Construction Materials
    ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)

    Note: Products must also be certified to: ANSI / UL 514C

    Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less
    Distance between boxes in adjacent cavities may be reduced to 5 ½ inches

    Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Documents

Description

PDF Button

Single gang electrical box for use with nonmetallic sheathed cable
