PC234-BHGV

Email

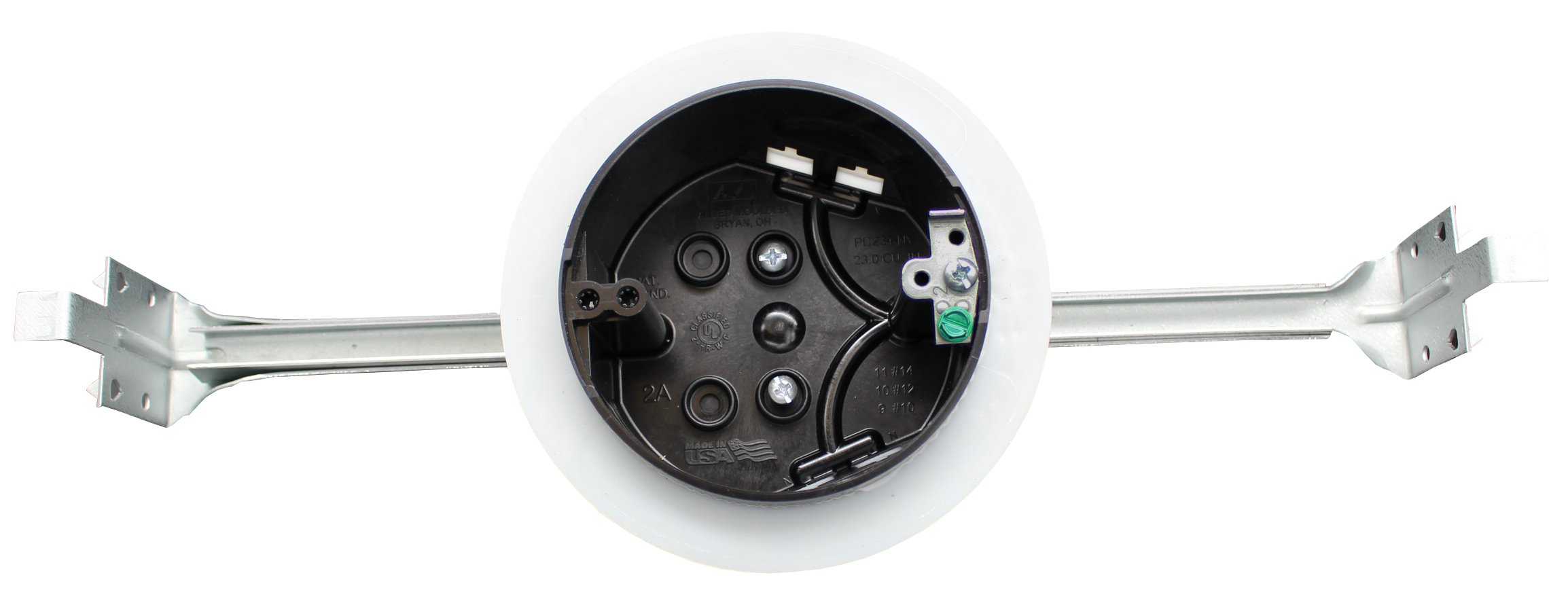

4″ dia. round VaporSeal® fixture support box for use with nonmetallic sheathed cable with grounding strap, aid in gaining Energy Star Rating

4″ round fixture support box with nails

Carton Quantity: 18
Mounting Description: Adjustable bar hanger - 16" to 24" on center joist application
Box Type: Ceiling - Fixture
Box Features: Bar hanger
Installation Type: New Work
Width: 4" (Box), 5-1/2" (Vapor Seal) in
Depth: 2-5/16 in
Volume: 23 cu. in.
Fixture Rating: 50lbs

Brand: Vapor Seal FlexBOX
UPC: 085339 989363
UNSPSC: 10085339 989360
Carton Weight: 12 lbs 5.443 kg
Country of Origin: United States of America
Color: Black
Fire Classification: Fire Test of Building Construction Materials ANSI / UL 263: File No. CEYY.R9379 (Category / File No.) Note: Products must also be certified to: ANSI / UL 514C Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less Distance between boxes in adjacent cavities may be reduced to 5 ½ inches Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
Patents: Patent Pending
Material: Polycarbonate
Additional Materials: Carbon steel fasteners
Box Diameter: 4

Features:
Thermoplastic Polyester Elastomer (TPE) flange for single 1/2″ & 5/8″ drywall offset, Molded-in splined device holes, sealed TPE Clamps
Application:
New work residential construction 2 HR fire resistive walls and ceilings (50 lbs. fixture support)
Box Diameter: 4
Standards:
ANSI / UL 514C: File No. E30594

NEMA OS 4 – Energy Efficient Air-Sealed Boxes for Electrical Applications
