PJ-20H :Allied Moulded Products

PJ-20H

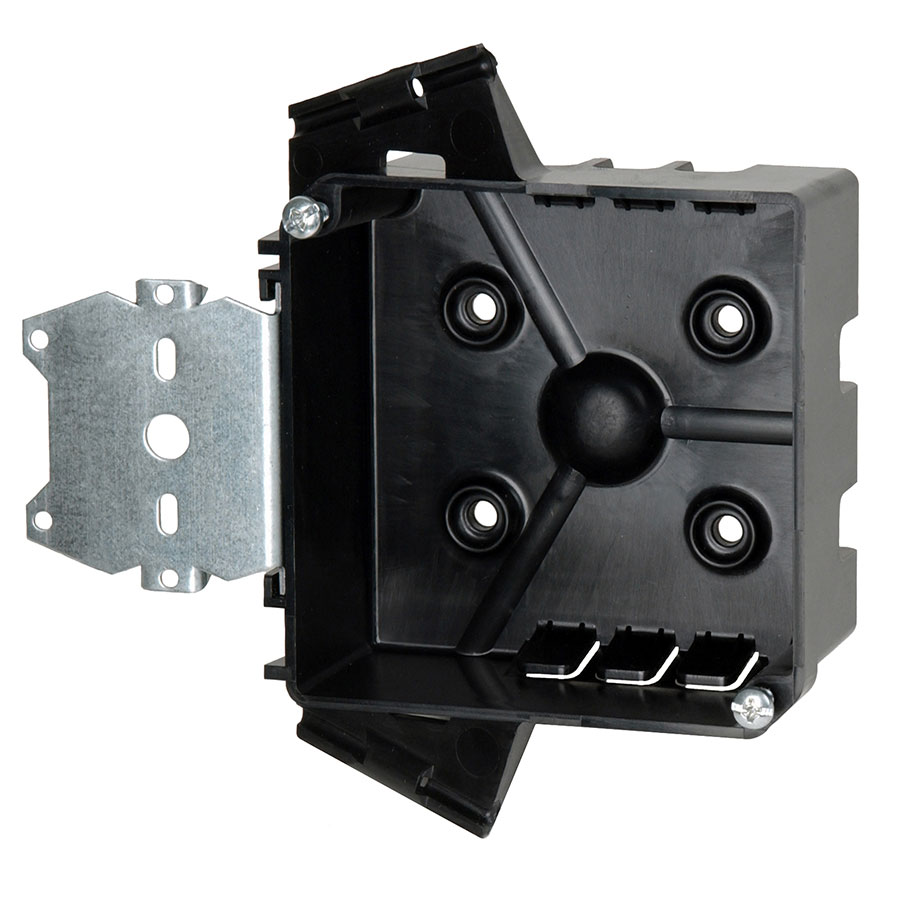

4 square inch electrical junction box for use with nonmetallic sheathed cable

Carton Quantity: 48
Mounting Description: Stud mount hanger bracket offset for flush mount plaster ring
Box Type: Wall - Junction
Box Features: "HL" hanger
Installation Type: New Work
Height: 4 in
Width: 4 in
Depth: 1-5/8 in
Volume: 20.5 cu. in.

Brand: flexBOX
UPC: 85339990000
UNSPSC: 39121332
Carton Weight: 15 lbs 6.804 kg
Country of Origin: United States of America
Color: Black
Fire Classification: Fire Test of Building Construction Materials ANSI / UL 263: File No. CEYY.R9379 (Category / File No.) Note: Products must also be certified to: ANSI / UL 514C Fire Resistance Classification in Wall Assemblies 2-Hours or less Shall be separated by a horizontal distance of not less than 24 inches Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
Patents: U.S. Patent No. 6,365,831 B1
Material: Polyvinyl Chloride
Additional Materials: Galvanized steel brackets and plated carbon steel fasteners, Plated carbon steel fasteners

Features:
Machine tapped cover screw holes, cover screws included
Application:
In the wall junction box with optional single and two gang plaster ring covers for junction box capacity and device applications – 2 HR fire resistive walls
Standards:
ANSI / UL 514C: File No. E30594
