AM363016L3PT Fiberglass enclosure with hinged cover and 3point handle

AM363016L3PT

View PDF

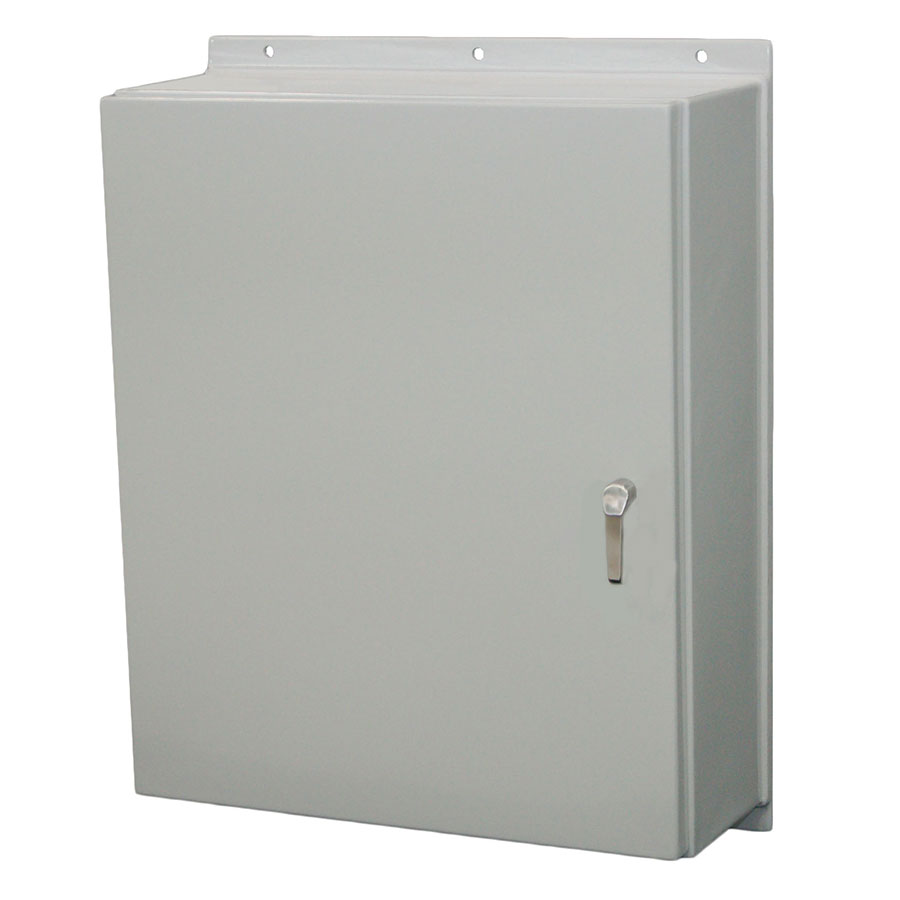

36"x30"x16" Empire Series fiberglass wall mount enclosure assembly with hinged cover and stainless-steel 3-point latching handle

AM363016L3PT

$2,670.40

Fiberglass enclosure with hinged cover and 3-point handle

SKU: 85339994817 Categories: , ,
Find Rep.
  • Availability:

    For up-to-date delivery on this product, please contact us at 1-800-722-2679 or sales@alliedmoulded.com

  • Enclosure Type: Wall Cabinets
  • Cover Type: Opaque
  • Closure Type: 3-Point Handle
  • Mounting Description: Molded flange
  • Height: 36.04 in 915.416 mm
  • Width: 30.04 in 763.016 mm
  • Depth: 14.16 in 359.664 mm
  • Usable Depth: 14.27 in 362.458 mm
  • Volume: 16976 cu. in. 278187409.6 cu mm

Product Info

  • Brand: Empire Series
  • UPC: 85339994817
  • UNSPSC: 39121324
  • Carton Quantity: 1
  • Carton Weight: 65 lbs 29.483 kg
  • Country of Origin: United States of America
  • Color: Gray (RAL 7035)
  • Material: ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and Cover
  • Additional Materials: 316 stainless steel external 3-point latching handle, 316 stainless steel external hardware (hinges/latches/fasteners), EPDM Spring loaded gasket, Plated alloy steel bonding fastener, Plated carbon steel internal hardware
  • Features:

    Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus molded-in mounting flanges and a spring loaded gasket system.

  • Application:

    Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.

  • Standards:

    UL 508A, UL 50 and UL 50E Types 1, 4, and 4X; File No. E120175

    Complies with:
    1. EN / IEC 60204-1 and 60529 Type IP66
    2. RoHS directive



     WARNING – PROP 65
    Click here for more information!

Documents

Online Order Notice

Outside the USA? Please call 1-800-722-2679 to talk with one of our customer service specialists! Online orders for USA customers only.

Description

PDF Button

36″x30″x16″ Empire Series fiberglass wall mount enclosure assembly with hinged cover and stainless-steel 3-point latching handle

Additional information

Weight 65 lbs
Dimensions 15 × 35 × 45 in

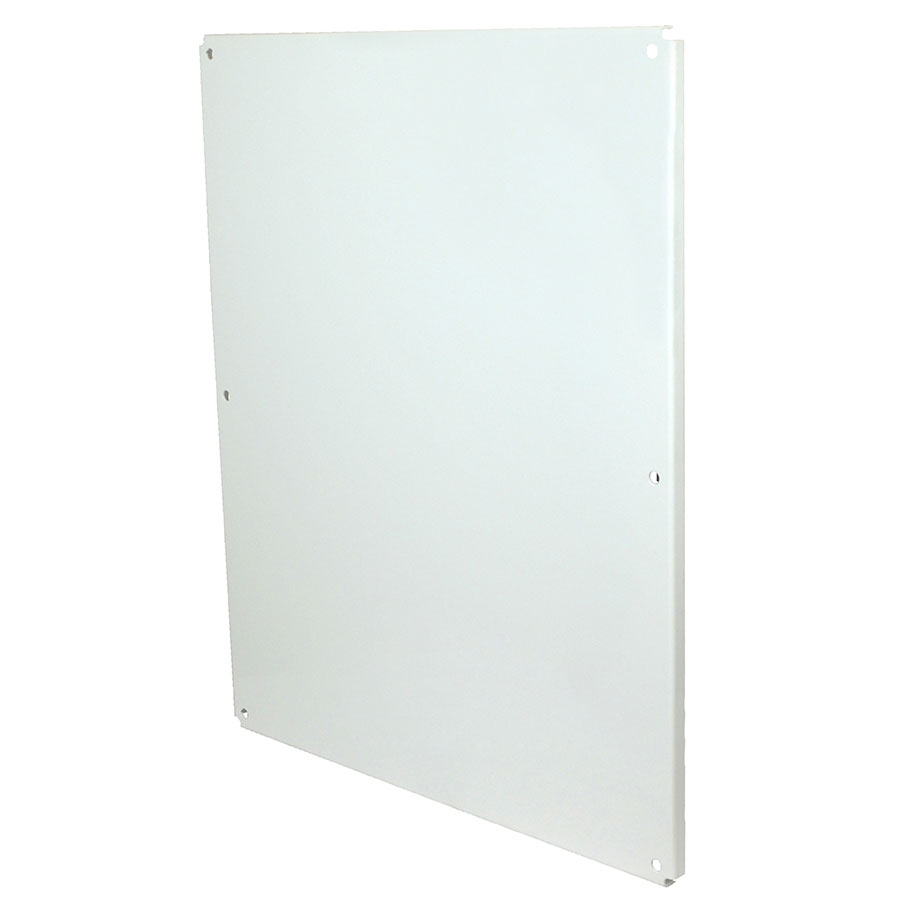

Related Products
