AMP1860LF Polycarbonate enclosure with hinged cover and snap latch

AMP1860LF

View PDF

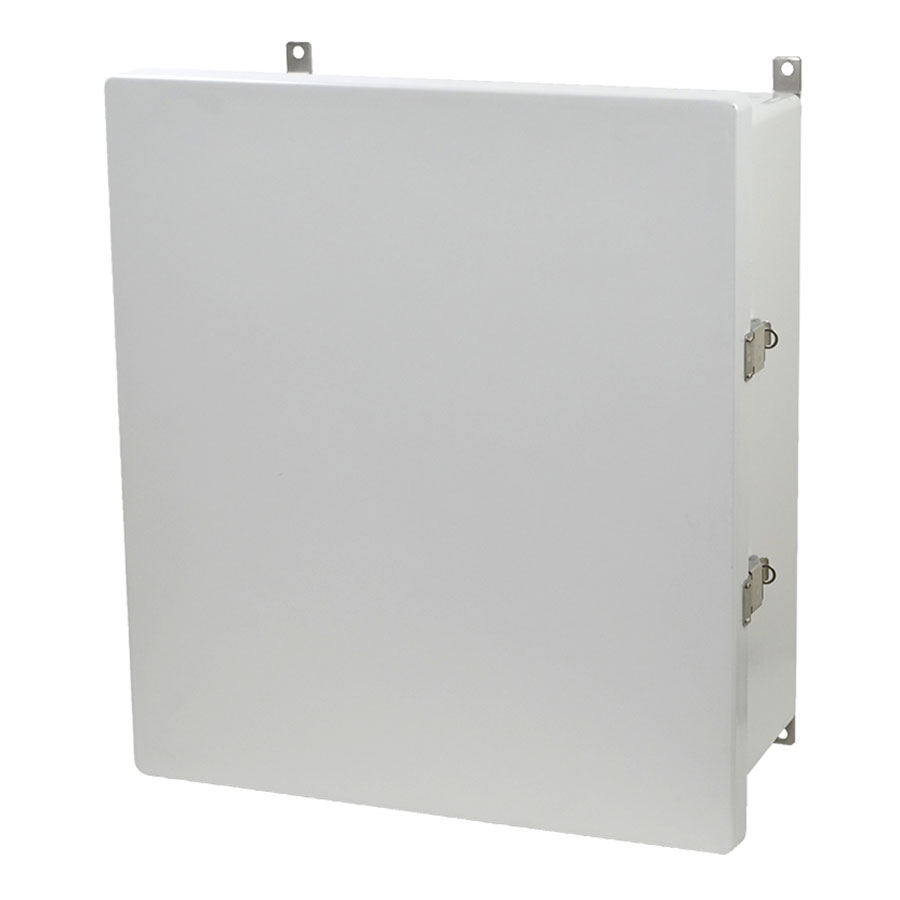

18"x16"x10" POLYLINE® polycarbonate wall mount enclosure assembly with hinged cover and stainless-steel snap latch

AMP1860LF

$203.89

Polycarbonate enclosure with hinged cover and snap latch

SKU: 85339991441 Categories: , ,
Find Rep.
  • Availability:

    For up-to-date delivery on this product, please contact us at 1-800-722-2679 or sales@alliedmoulded.com

  • Enclosure Type: JIC Size
  • Cover Type: Opaque
  • Closure Type: Metal Snap Latch
  • Mounting Description: Nonmetal flange fastened to back side brass inserts
  • Height: 18.04 in 458.216 mm
  • Width: 16.04 in 407.416 mm
  • Depth: 9.81 in 249.174 mm
  • Usable Depth: 10.27 in 260.858 mm
  • Volume: 3183 cu. in. 52160139.3 cu mm

Product Info

  • Brand: POLYLINE®
  • UPC: 85339991441
  • UNSPSC: 39121324
  • Carton Quantity: 1
  • Carton Weight: 12 lbs 5.443 kg
  • Country of Origin: United States of America
  • Color: Gray (RAL 7035)
  • Patents: U.S. Patent No. 7,572,975
  • Material: Polycarbonate box and cover
  • Additional Materials: 316 stainless steel external hardware (hinges/latches/fasteners), Polycarbonate mounting brackets, Plated carbon steel internal hardware, Brass inserts, Polyurethane (FIP) Formed-In-Place gasket system
  • Features:

    Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus nonmetallic mounting brackets and a gasket system encased in a continuous channel on the cover.

  • Application:

    Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.

  • Standards:

    UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175

    Complies with:
    1. EN / IEC 60204-1 and 60529 Type IP66
    2. RoHS directive



     WARNING – PROP 65
    Click here for more information!

Documents

Online Order Notice

Outside the USA? Please call 1-800-722-2679 to talk with one of our customer service specialists! Online orders for USA customers only.

Description

PDF Button

18″x16″x10″ POLYLINE® polycarbonate wall mount enclosure assembly with hinged cover and stainless-steel snap latch

Additional information

Weight 12 lbs
Dimensions 12 × 20 × 21 in
